Specification of 2015 Ford F150 King Ranch 4x4

by Ford Fidelity Road 2024. 1. 21.



2015 Ford F150 King Ranch

Drive : 4WD
Engine : 6 Cylinder / 3.5L Engine
Transmission : Automatic
Fuel Economy : Highway 23 / City 17

Care & Convenience

A/C
A/C Seat(s)
ABS Brakes
Automated Cruise Control
Front Seat Heaters
Leather
Momory Seat(s)
Navigation System
Overhead Airbags
Parking Sensors
Power Mirros
Power Seat(s)
Power Windows
Rear Seat Heaters
Rear View Camera
Remote Start
Side Airbags
Tracktion Control

Entertainment

Auxiliary Audio Input
CD Audio
Satellite Radio Ready
SiriusXM Trial Available
Sony Sound System
Sync System

Packages

FX4

Exterior

20 Inch Plus Wheels
Alloy Wheels
Panoramic Sunroof
Running Boards
Tow Hitch





Drive : 4x4
Cargo Box : 5.5 ft.
Wheelbase : 145.0 in.

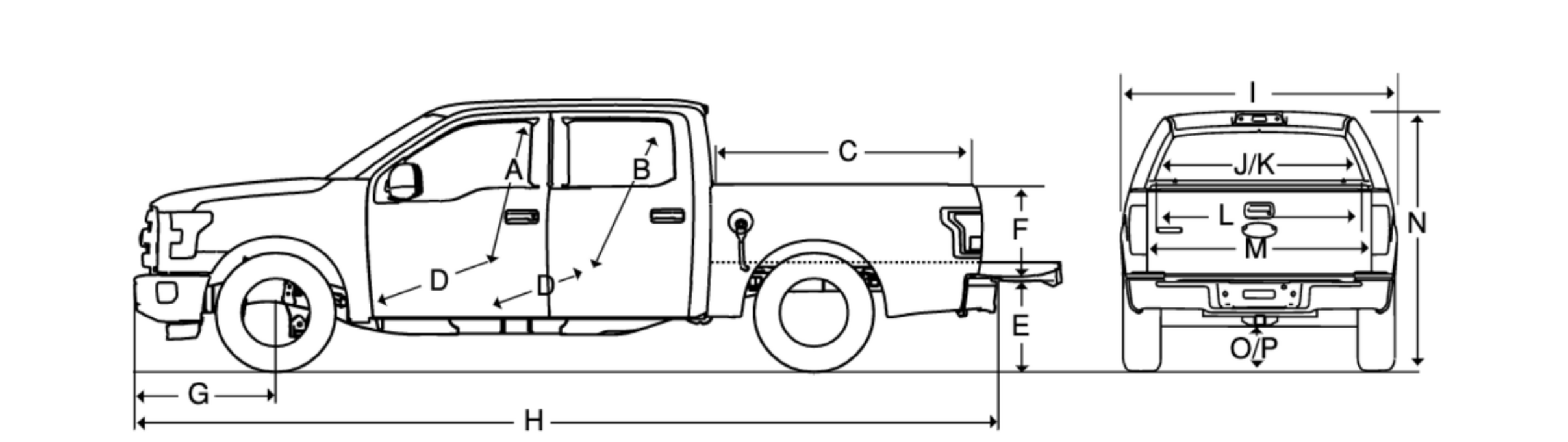

A. Head Room (Front) : 40.8 in.
B. Head Room (Rear) : 40.4 in.
C. Inside Length (at floor) : 67.1 in.
D. Leg Room (Front) (maximum) : 43.9 in.
    Leg Room (Rear) : 43.6 in.
E. Open Tailgate to Ground (Empty) : 34.9 in.
F. Inside Height : 21.4 in.
G. Front Overhang : 37.8 in.
H. Overall Length : 231.9 in.
I. Width (Max.) (excluding mirrors) : 79.9 in.
J. Shoulder Room (Front) : 66.7 in.
   Shoulder Room (Rear) : 65.9 in.
K. Hip Room (Front) : 62.5 in.
    Hip Room (Rear) : 64.7 in.
L. Width Between Wheelhouses : 50.6 in.
M. Max. Load Width (at floor) : 65.2 in.
N. Cab Height (Empty) : 76.9 in.
O. Ground Clearance (front) : 10.2 in.
P. Ground Clearance (rear) : 9.3 in.

2015 Ford F-150 3.5L EcoBoost 4x4

Engine type : 3.5L V6 Ti-VCT
EPA Fuel Economy City/Hwy/Combined : 17/23/19
Horsepower : 365
Torque : 420
Max Towing : 12,000
Max Payload : 3,050

Powertrain

Transfer Case Specifications

Shift Type : Electric Shift-On-the-Fly (ESOF) / 2-speed Automatic Four-wheel Drive (4WD)
Gear Tyep : 2-speed Planetary Gears
Lubricant Capacity (qt.) : 1.3 - 1.5 liters
Gear Ratio - High : 1.00:1
Gear Ratio - Low : 2.64:1
Case Material : Magnesium

Automatic Transmission Specifications

Make/Type : Ford 6-speed Automatic Overdrive (6R80E)
Engines : 3.5L EcoBoost V6
Ratios (to 1):
 1st : 4.17
 2nd : 2.34
 3rd : 1.52
 4th : 1.14
 5th : 0.86
 6th : 0.69
 Reverse : 3.40
Converter Size and Type : 250 mm 155K (Single-stage Converntional)
Converter Stall Ratio : 2.30
Lubricant Capacity (qt.) : 12.0
Planetary : Simple and Ravigneaux
Helical Gears : All
Turbine Speed Sensor System : Yes
Fully Electronic Shift Scheduling : Yes
Weight (with Fluid) : 208 lbs.

Oil & Fluid Volume

Engine oil : 6.0 qt (5.7 L)
Engine coolant : 15.6 qt (14.75 L)
Brake fluid : Between MIN/MAX on brake fluid reservoir
Front axle fluid (Four-wheel drive) : 3.5 pt (1.7 L)
Rear axle fluid : 5.5 pt (2.6 L)
Automatic transmission fluid : 13.1 qt (12.4 L)
Transfer case fluid Four-wheel drive (Electronic Shift-on-the-Fly) : 1.5 qt (1.4 L)
Transfer case fluid Automatic four-wheel drive (Torque on demand) : 1.5 qt (1.4 L)
Windshield washer fluid : Fill as required
Fuel tank : 36.0 gal (136.2 L)
A/C Refrigerant : 1.5 lb (.68 kg)
A/C Refrigerant Compressor Oil : 3.4 fl oz (100.5 ml)

Axles

Front Axle Spec

Front Axle type : Long-spindle Double-wishbone, Coil-over-shock Independent Front Suspension
Upper Control Arm Material : Stampered Steel

Lower Control Arm Material : Stampered Steel
Spring Tyep : Coil-over-shock, Computer-selected
Ball Joint : Lubed-for-Life
Spindle Material : Cast Aluminium Body with Forged Steel Stem
Wheel Bearings Type : Tapered Roller (GEN 2 Flange)

Rear Axle Spec

Rear Axle type : Semi-floating
Housing Type : Cast Center
Housing Cover Attachment : Bolted
Wheel Bearings Type : Straight Roller
Gears Type : Hypoid
Gears Material : Alloy Steel
Pinion Mounting : Overhung
Differential Type : 2-pinion
Differential Bearing : Tapered Roller

Brakes

Front/Rear Disc type : Vented, Twin-piston Front and Single-piston Rear Caliper
Front/Rear Disc Rotor Diameter : Front 13.8", Rear 13.7"
Power Assist Unit type : Tandem-diaphragm
Power Assit Unit Effective Diameter : Front 9.07", Rear 8.98"
Anti-Lock Braking System : 4-wheel (4-channel with Electronic Brake Force Distribution)
Parking Brake (Rear Brakes) : Foot-operated

Electrical

Alternator Rating : 200 Amp. 2700 Watt/240 Amp. 3240 Watt
Battery Type : Maintenance-free (Battery Saver System Satandard)
Battry Rating : 70 Amp-hr., 610 CCA; 80 Amp-hr., 730 CCA
Harnesses Type : 3-pin Connector

Steering

Power, Rack-and-pinion; Electric Power-assist

Suspension

Frame type : Fully boxed, modular high-strength steel with B crossmembers that are welded on both sides
Spring, Front type : Coil, Computer-selected
Spring, Rear type : Leaf, Two-stage Variable-rate, Computer-selected
Shock Absorbers Gas-type : Front 1.38" / Rear 1.26"
Stabilizer Bar Position/Diameter/Type : Front/36 mm/Hollow

Tires

type : Steel-belted Radial All-terrain
Spar Tire Carrier : Rear Underframe, Winch-type with Safety Catch (Locking-type, Lock Cylinder in Rear Bumper Opened by Ignition Key)

Wheels

6-hole Disc : Four 17" x 7.5" Gray Styled Steel with Same-size Stell Spare
